Laser systems · LightmedLightmed LIGHTLas 577

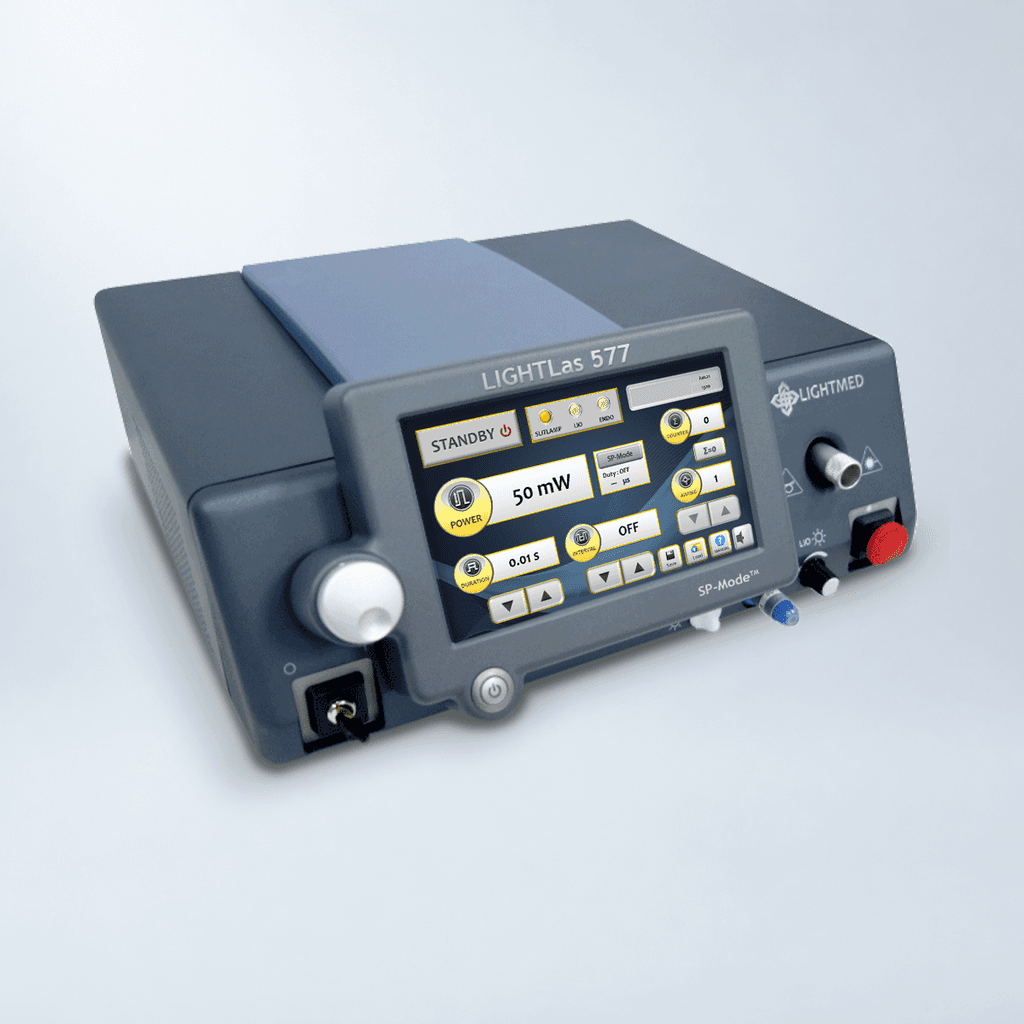

The LIGHTLas 577 from Lightmed is a yellow-light laser photocoagulator for ophthalmic practice. The system operates at 577 nm with continuously adjustable power up to 2,0 W, combining continuous-wave (CW) photocoagulation with SP-Mode® microsecond laser technology.

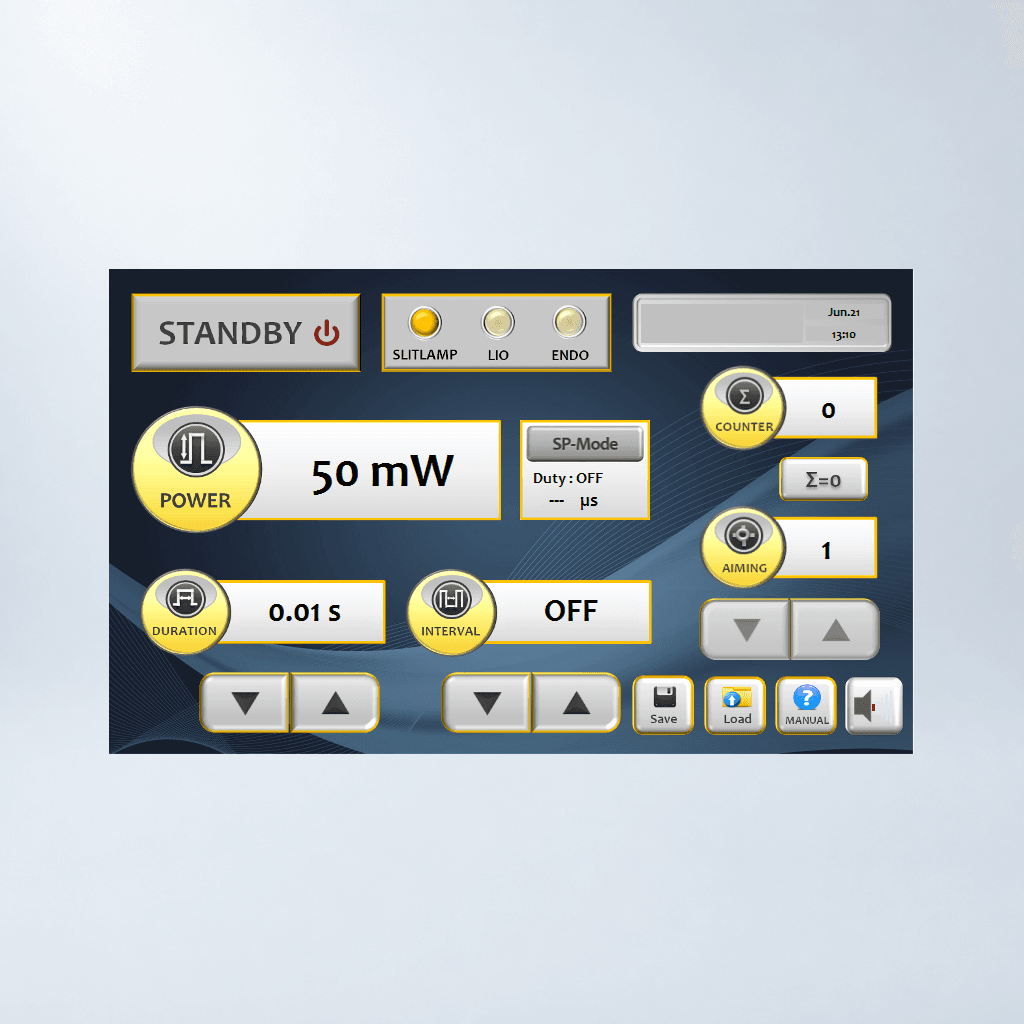

Operation is via a 7-Zoll-LCD-Touchscreen. Power, duration and treatment mode can be set on the display; frequently used settings can be saved and recalled.
We can advise you on integrating the system into your practice, as well as on delivery and servicing.
Equipment information
| Status | New equipment |
|---|---|
| Laser system | Optically pumped semiconductor laser (OPSL) |
| Wavelength | 577 nm, yellow |
| Operating modes | Continuous Wave (CW) and SP-Mode® |
| Output power | 0,05–2,0 W, continuously adjustable |
| Pulse duration | 0,01–3,0 s, continuously adjustable |
| Pulse interval | 0,01–3,0 s and continuous operation |
| SP-Mode® – pulse duration | 150–600 µs, in 50-µs-Schritten increments |
| SP-Mode® – duty cycle | 5–30 %, in increments of 2,5% |
| SP-Mode® – period duration | 1.400–1.850 µs, in 50-µs-Schritten increments |
| Aiming beam | Red, 635–650 nm, maximum 1 mW |
| Controls | 7-Zoll-LCD-Touchscreen with memory function |
| Cooling | Automatic fan and thermoelectric cooling (TEC) |
| Laser class | Class 4; aiming beam Class 2 |
| Console dimensions (H × W × D) | 13 × 36 × 33 cm |
| Console weight | 8,8 kg |
| Power supply | 100–230 V AC, 50–60 Hz, automatic range selection |
Contents of the delivery
- LIGHTLas 577 laser console with integrated 7-Zoll-LCD-Touchscreen and CW/SP-Mode® functionality
- Foot switch
- Laser safety glasses
- Carrying case
